Fitness Audio Mini Mixer

Introducing the AMX-1+1SR Mini Mixer: a purpose made Voice over Music Mixer for use in studio systems on a budget. Connect a wireless mic receiver and either a BlueTooth Receiver or a CD Player into the RCA sockets on the back. Rack-mount it with the included rack mount kit. It features an auto selecting jack input socket on the front panel when using a smart phone with our exclusive iJax hook-up cable as supplied.

Now streaming ready! This latest version of the Aeromix 1+1SR has a new independent volume controlled 3.5mm mini-jack output socket. It will take your Voice over Music mix and feed it to an outboard Analog to Digital USB Soundcard (not supplied) or direct to your computer or phone with the right adaptor.

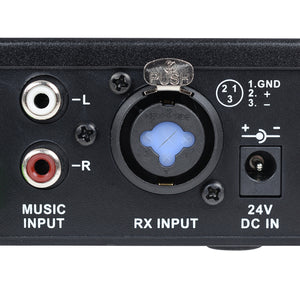

Combi Mic Input: The latest version also features a Combination Mic Input. Combi mic sockets will accept a 6.35mm Jack plug (unbalanced or balanced) in the centre of the socket. They will also accept a balanced line XLR cable from the Mic Out socket found on the majority of quality wireless mic receivers. Balanced line connections sound better, revealing more “body” in the voice. They are less susceptible to noise and interference.

When connected to your computer’s USB socket for Zoom or other types of streaming class sessions, you’ll hear a high quality soundtrack over the internet to go with the vision. Use the volume control to boost the output level into the computer should you need to turn down the Aeromix’s Master Level for a lower sound level in the studio.

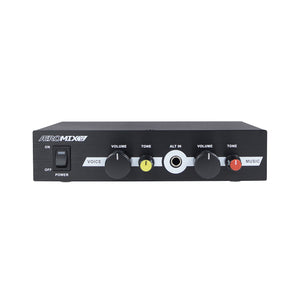

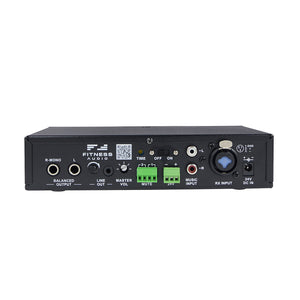

The Mixer has separate Voice and Music Volume and Tone Sweep Controls. The set and forget Master Volume control is hidden away on the rear panel. It has matching styling to the Fitness Audio U-Series Wireless Receiver and our AeroLink Bluetooth Receiver so you can rack mount it in either a standard 19 inch rack or a 10" IT Rack (Rack Mount Kits are optional extras). Two Balanced 6.35mm TRS output jacks on the back allow connection to a stereo or mono Power Amp or to Powered Speakers with the additional cables supplied as extras.

Also included are connections on the back to link the MiniMixer to a Soundear Loudness Monitor. Connect the two together with a run of CAT5/6 cable and when the pre-set sound level is exceeded by a few adjustable seconds then the mixer reacts by cutting the sound back by 15dB. To restore sound to the pre-set allowed volume just lower the mic and mixer levels a touch until just the first red led lights up on the LM-30 not all 3! There is also a Music Mute connection to a fire Alarm system if it is required.

We are excited about this latest addition to our range because we can combine the Mini Mixer with our other half rack size models to make up a range of useful sound systems for many different room sizes when connected to a range of 4 powered loudspeakers. In Australia we will be using them with pairs of 5", 8", 10" and 12" 2-way active loudspeakers with the option to have a seperate power amp and passive versions of the loudspeakers too.
